Electrical Services in Wedgefield, FL
A lot of "AC problems" in Wedgefield turn out to be electrical. Weak breakers. Loose connections. Panels that haven't been touched since the home was built. Liberty Air and Electric is licensed for both HVAC and electrical, so the call doesn't bounce to a different trade. Full electrical scope across 32833.
- Licensed for residential electrical
- AC and heating circuit work
- Panel, breaker, and surge upgrades
Electrical Work for Wedgefield Homes, in Plain Terms
Liberty Air and Electric works the wiring in Wedgefield homes built between 2000 and 2012, where the original electrical was up to code at the time and most of it still is. But code has moved. Loads have changed. The number of high-draw devices in a typical home (multiple ACs and heat pumps, EV chargers, induction cooking, larger appliances) is significantly higher today than when most of these homes were wired. The electrical system in a 2004 Wedgefield home wasn't designed for what a 2026 family runs through it.
That shows up in three ways.
Panels at or near capacity. Original 200-amp panels handle most homes fine, but lots of homes have had circuits added piecemeal over the years. Some have run out of breaker slots. Some are using tandem breakers as a workaround. A few are showing real signs of strain.
Breakers aging in service. Breakers don't last forever. After 15 to 20 years of cycling on and off (especially on heavy circuits like AC, heat strips, well pumps, and water heaters), they weaken. They may still hold under normal load and trip nuisance-style under high load. The result looks like equipment problems but isn't.
Outdoor disconnects and connections corroding. Florida humidity and outdoor exposure are hard on the electrical components mounted next to the AC condenser. Corroded lugs, loose connections, and weathered boxes are common after 15+ years.
We see all of it in regular Wedgefield AC service visits where the diagnostic ends up on the electrical side. Because we're licensed for both, we can handle either path without you needing two service calls.
Liberty Air and Electric covers HVAC electrical specifically (circuits feeding the AC, heat strips, air handlers), plus general residential electrical. Panels, sub-panels, surge protection, EV charger installs, generator interlocks, dedicated circuits, troubleshooting.
Liberty Air and Electric — Wedgefield Electrical, Done Right
- Licensed electrical contractor, not subbed out
- HVAC + electrical handled by the same crew
- Panel and breaker work done to current code
Capacitor failures masking as full-system failures
The capacitor is the part most homeowners have heard of, and rightly so. It's the most common electrical failure on outdoor units. A weak or failed capacitor often presents as a unit that won't start, hums but doesn't spin, or starts and immediately fails. Quick fix when caught. Usually the cheapest Wedgefield AC service you'll ever book.
Contactor pitting and welding
The contactor is the relay that completes the circuit when the system calls for cooling. It cycles thousands of times a season. Eventually the contacts pit, weld, or fail to close cleanly. The system either won't run, runs continuously, or short-cycles. Replacement is straightforward.
Loose connections at the disconnect
The exterior disconnect mounted next to the condenser is a common failure point. Vibration, thermal cycling, and corrosion loosen lug connections over time. Voltage drops, the system runs poorly, components age fast under low-voltage conditions. Tightening or replacing the disconnect fixes it.
Weak breakers tripping under heat-strip load
Heat strips draw serious current during cold-snap mornings. A breaker that's been weakening through the cooling season often shows up first when the heat is called for. The system reads as a heating problem and is actually a panel-side problem. When it's the other way around (equipment-side instead of breaker-side), that becomes a Wedgefield heating repair call rather than an electrical one.
Surge damage from Florida thunderstorms
Florida leads the country in lightning strikes per square mile. Surge events take out control boards, capacitors, contactors, and sometimes outdoor unit electronics. Whole-home and at-equipment surge protection are real upgrades for Wedgefield homes that haven't already added them.
Our HVAC electrical work follows the same diagnostic discipline as the mechanical side. Diagnose first, document, then repair. Guesswork on the electrical side is more dangerous than on the mechanical side, so we don't do it.
A typical visit:
- Symptom intake. What's happening, when, on what equipment.

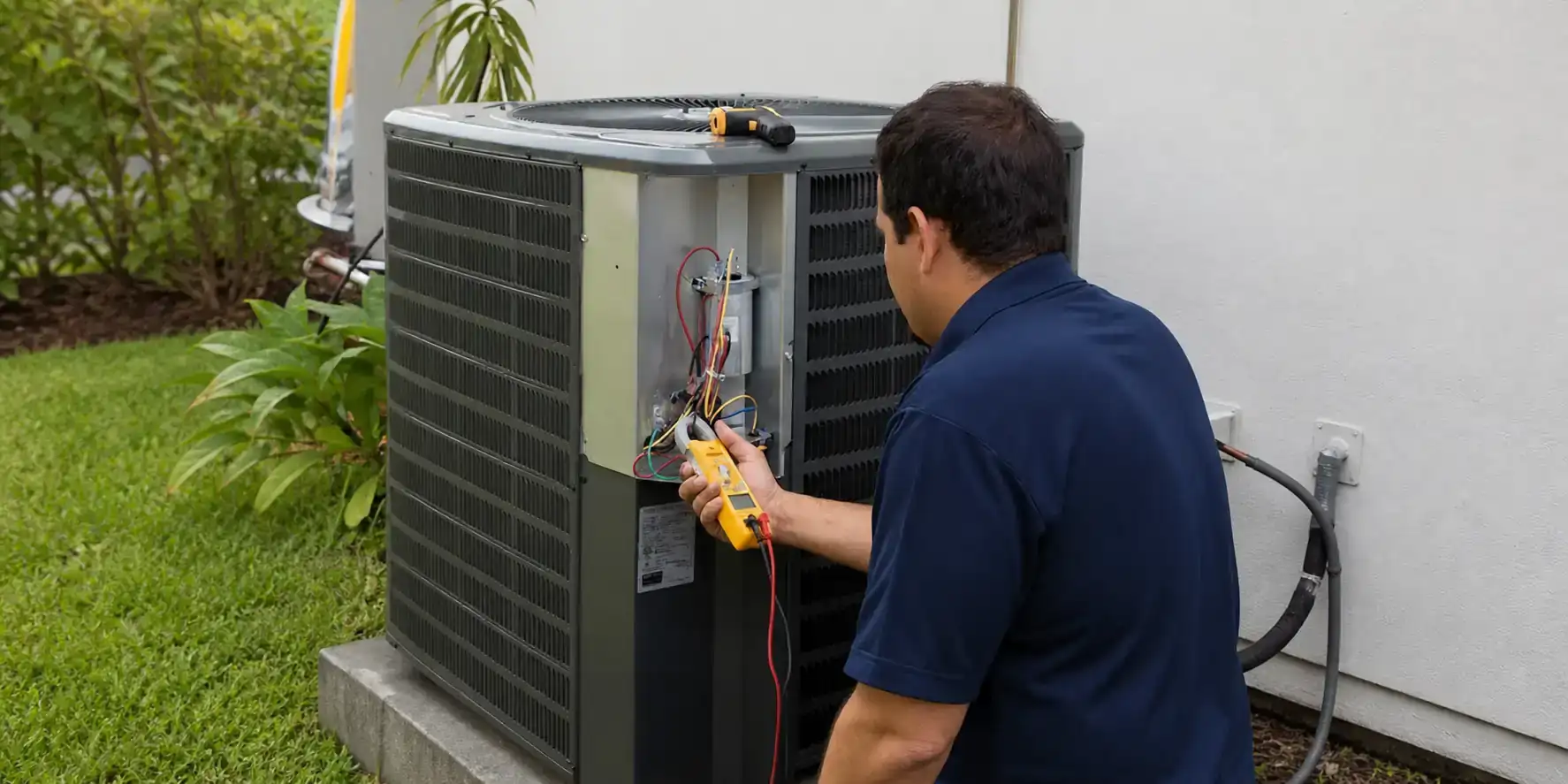

- Voltage and continuity checks. At the panel, at the disconnect, at the unit. Where the voltage is and where it isn't.
- Component testing. Capacitor, contactor, breakers, control boards as applicable.
- Connection inspection. Lug torque, corrosion, signs of arc damage.
- Load assessment where relevant. What's the panel actually running, and is it within spec.
- Diagnosis and pricing. Straight prices on parts and labor, no surprises.
When the electrical work crosses over into HVAC repair scope (for example, if a contactor failure has caused a compressor to run hot), we'll lay out the full picture, not just the electrical side.
When It's Electrical vs. When It's the AC
Liberty Air and Electric sorts the electrical side from the AC side by reading the symptom pattern:
Likely electrical:
- System won't start at all, no humming, no fans
- Breaker keeps tripping
- Outdoor unit hums but won't spin
- Lights dim or flicker when system kicks on
- Burning smell from the disconnect or panel
Likely AC mechanical/refrigerant:
- System runs but doesn't cool
- Ice on the indoor coil or refrigerant lines
- Hissing or refrigerant odor at the unit
- Warm air from registers while the system is running
Plenty of cases are mixed. The failed contactor has caused a refrigerant problem, or the bad capacitor has stressed the compressor. We handle both, so the call doesn't bounce.
DIY vs. Pro on HVAC Electrical
Liberty Air and Electric says a few things are reasonable for a homeowner to check:
- Reset the breaker (once)
- Confirm the disconnect is engaged
- Replace a thermostat battery
- Make sure the outdoor unit isn't covered or blocked
Beyond that, HVAC electrical work isn't a DIY scope. The voltages involved are dangerous. Capacitors hold charge after power is cut. Bad work creates fire risk. The cost difference between a homeowner attempting electrical repair and calling someone licensed isn't worth the downside if it goes wrong.
What Bad Electrical Work Costs You
Bad electrical issues compound. A loose connection runs hot. A hot connection corrodes faster. A corroded connection arcs. An arcing connection eventually starts a fire. Or, more commonly, takes out the equipment it's feeding.
Capacitors that get replaced too late take compressors with them. Bad breakers that don't trip when they should let circuits cook. Surge events without protection can take out a control board, a fan motor, and sometimes a full system in one strike. That turns what could've been a quick AC repair fix into a full system replacement conversation.
Get it inspected before something gives.
Same-day electrical service across Wedgefield.
Why Wedgefield Trusts Liberty With the Electrical Side
Our approach is to fix the actual problem, including the underlying cause. A failing capacitor on a 19-year-old system might mean a bigger conversation about whether the equipment is worth keeping at all. We'll lay out what swapping out an aging system would actually cost if that's the better path. On systems past 18 years, the right answer is sometimes a fresh AC install instead of another round of electrical patches.
A few practical reasons homeowners stick with us:
- We're licensed for both HVAC and electrical, which is unusual for residential contractors and means cleaner diagnostics on mixed problems.
- Our crew handles its own work. No subcontracted electrical surprises after the fact.
- We document what we did and why, including any code work that requires permitting and inspection.
- Our truck stock includes the parts we actually need on a typical Wedgefield call. Capacitors, contactors, common breakers, surge protectors, disconnect components.
Where Liberty Runs Electrical in 32833 and Beyond
Wedgefield (32833), surrounding stretches along SR 520 and SR 50, and rural pockets toward Christmas. We work across Wedgefield's sub-communities (Estate, Reserve, Village, and City) and coordinate with our regular Wedgefield maintenance plan routes when scheduling allows.
What Electrical Work Costs in Wedgefield
Liberty Air and Electric prices electrical on the HVAC side at the lighter end of the AC repair scale. Minor electrical repairs (capacitors, contactors, fuses, small relays) typically run $75 to $450. Disconnect replacements, breaker work, and at-equipment surge protection installs land in similar ranges. Larger residential electrical scope (panel upgrades, sub-panels, dedicated circuits, EV charger installs) gets quoted by job. Permit and inspection costs are separate where required. The broader electrical service page has the full pricing breakdown.
Wedgefield Electrical FAQs
Wedgefield Electrical Questions
Q: My breaker keeps tripping on the AC. Is it the breaker or the AC?
A: Could be either, and both are diagnosable in one visit. A repeatedly-tripping breaker either has an underlying short or overload (AC side problem), is weak and tripping below its rating (electrical side problem), or both. We test for both on the call.
Q: Do I need surge protection?
A: For a Wedgefield home with HVAC, electronics, and modern appliances, yes. Florida leads the country in lightning strikes, and surge events are common. Whole-home protection at the panel plus at-equipment protection on the outdoor unit is the standard recommendation.
Q: Can you handle a panel upgrade?
A: Yes. Full panel replacements, sub-panel additions, and circuit additions all in scope. We pull the permit and handle the inspection.
Q: Do you do EV charger installs?
A: Yes. Level 2 home chargers in scope. Includes the dedicated circuit, panel work as needed, and the charger install.
